# ISLR Lab - Decision Trees

Back to basics

Revisiting concepts of Bagging, RF, Boosting & BART
R
ISLR
Author

Ramakant

Published

March 2, 2023

All the code here is derived from the legendary book ISRL 2nd editionâ€™s chapter 8 â€śDecision Treesâ€ť. Its sometimes a wonder how elegant the base R language can be. The ISRL lab rarely mentions tidyverse syntax but yet manages to make the code so easy to read. The more you learn!đź¤“

# Quick Revision

1. In $$Bagging$$ , the trees are grown independently on random samples of the observations. Consequently, the trees tend to be quite similar to each other. Thus, bagging can get caught in local optima and can fail to thoroughly explore the model space
2. In $$Random Forest$$, the trees are grown independently on random samples of the observations. However, each split on each tree is performed on random subset of predictors, thereby decorrelating the trees and leading to a better exploration relative to bagging. Both bagging & RF are ensemble methods which makes prediction from average of regression trees. Both also use bootstrap sampling.
3. In $$Boosting$$, we only use the original data and donâ€™t draw random samples. The trees are grown successively using a â€śslowâ€ť learning approach; each new tree is fit to the signal that is left over from the earlier trees. Boosting is an ensemble method that uses weighted sum and doesnâ€™t involve bootstrap sampling as the trees are fitted on a modified version of the original dataset.
4. In $$BART$$, we only use the original data and we grow the trees successively. However each tree is perturbed in order to avoid local minima. BART is related to the Boosting & RF â€” each tree is created in a random manner like bagging & RF and each tree tries to capture some signal not yet accounted for in the current model like Boosting. BART tries to improve the partial residual of current tree by slightly modifying the previous iteration (changing the structure by altering number of nodes)
Code
library(tree)
library(ISLR2)

In todayâ€™s lab, we will be using the Carseats dataset from the ISLR2 package.

Code
str(Carseats)
'data.frame':   400 obs. of  11 variables:
$Sales : num 9.5 11.22 10.06 7.4 4.15 ...$ CompPrice  : num  138 111 113 117 141 124 115 136 132 132 ...
$Income : num 73 48 35 100 64 113 105 81 110 113 ...$ Advertising: num  11 16 10 4 3 13 0 15 0 0 ...
$Population : num 276 260 269 466 340 501 45 425 108 131 ...$ Price      : num  120 83 80 97 128 72 108 120 124 124 ...
$ShelveLoc : Factor w/ 3 levels "Bad","Good","Medium": 1 2 3 3 1 1 3 2 3 3 ...$ Age        : num  42 65 59 55 38 78 71 67 76 76 ...
$Education : num 17 10 12 14 13 16 15 10 10 17 ...$ Urban      : Factor w/ 2 levels "No","Yes": 2 2 2 2 2 1 2 2 1 1 ...

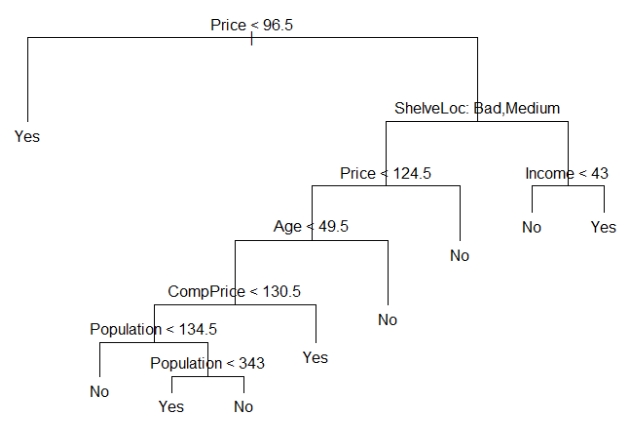

$US : Factor w/ 2 levels "No","Yes": 2 2 2 2 1 2 1 2 1 2 ... Creating a column called High which takes a Y/N value depending on the sales and then merge it with the Carseats df. Code attach(Carseats) High <- factor(ifelse(Sales <= 8, "No", "Yes")) Carseats <- data.frame(Carseats, High) # Fitting Classification Trees on Carseats Creating a classification tree to predict High using all variables except Sales Code set.seed(1) tree.carseats <- tree(High ~ .-Sales, data = Carseats) summary(tree.carseats)  Classification tree: tree(formula = High ~ . - Sales, data = Carseats) Variables actually used in tree construction: [1] "ShelveLoc" "Price" "Income" "CompPrice" "Population" [6] "Advertising" "Age" "US" Number of terminal nodes: 27 Residual mean deviance: 0.4575 = 170.7 / 373 Misclassification error rate: 0.09 = 36 / 400  Misclassification error of 9% is a good fit. Letâ€™s try plotting it Code plot(tree.carseats) text(tree.carseats, pretty =0 ) ## Splitting and fitting the model Code set.seed(2) train <- sample(1:nrow(Carseats), 200) Carseats.test <- Carseats[-train,] High.test <- High[-train] tree.carseats <- tree(High ~ .-Sales, data = Carseats, subset = train) checking the top few rows of predicted columns Code tree.predict <- predict(tree.carseats, Carseats.test, type = "class") #type is needed to declare classification model head(tree.predict) [1] Yes No No Yes No No Levels: No Yes Comparing predicted with actual values Code table(tree.predict, High.test)  High.test tree.predict No Yes No 104 33 Yes 13 50 Whatâ€™s the accuracy? Code (104+50)/200 [1] 0.77 77% Accuracy ## Pruning the tree for improved classification To improve the accuracy, lets attempt to prune the tree. For this cv.tree() function is used to determine the optimal level of tree complexity. Here the FUN argument is taken as prune.misclass to indicate that the cross-validation and tree pruning should be guided by the classification error instead of the default deviance. Code set.seed(7) cv.carseats <- cv.tree(tree.carseats, FUN = prune.misclass) names(cv.carseats) [1] "size" "dev" "k" "method" Note to self: • k is the regularisation parameter $$\alpha$$ (alpha) • size is # of terminal nodes for each tree • dev is the number of cross-validation errors Code cv.carseats $size
[1] 21 19 14  9  8  5  3  2  1

$dev [1] 75 75 75 74 82 83 83 85 82$k
[1] -Inf  0.0  1.0  1.4  2.0  3.0  4.0  9.0 18.0

$method [1] "misclass" attr(,"class") [1] "prune" "tree.sequence" Visualising the tree. The classification error is least (74) at size = 9 Code par(mfrow = c(1,2)) plot(cv.carseats$size, cv.carseats$dev, type = "b") plot(cv.carseats$k, cv.carseats$dev, type = "b") Using the prune.misclass() function to prune the tree to the 9-node specification. Code prune.carseats= prune.misclass(tree.carseats, best = 9) plot(prune.carseats) text(prune.carseats, pretty = 0) Checking the accuracy in the good-old fashioned way (its really that simple!)đź¤“ Code prune.tree.pred <- predict(prune.carseats, Carseats.test, type = "class") table(prune.tree.pred, High.test)  High.test prune.tree.pred No Yes No 97 25 Yes 20 58 So whatâ€™s the accuracy? Code (97+58)/200 [1] 0.775 77.5% which is slightly better than the non-pruned tree. Not bad. ## Key Takeaways 1. Without tuning the model, the default DT algo creates a tree with 27 nodes 2. deviance measured as a result of changing the number of nodes indicates the best DT of 9 nodes. 3. The code needed to write this is surprisingly simple. However, the tidymodels interface allows for managing the resulting output and models in a more structured way. # Fitting regression trees on Boston dataset Boston dataset contains housing values of 506 suburbs of Boston. We are trying to predict the median value of the owner-occupied homes medv Code str(Boston) 'data.frame': 506 obs. of 13 variables:$ crim   : num  0.00632 0.02731 0.02729 0.03237 0.06905 ...
$zn : num 18 0 0 0 0 0 12.5 12.5 12.5 12.5 ...$ indus  : num  2.31 7.07 7.07 2.18 2.18 2.18 7.87 7.87 7.87 7.87 ...
$chas : int 0 0 0 0 0 0 0 0 0 0 ...$ nox    : num  0.538 0.469 0.469 0.458 0.458 0.458 0.524 0.524 0.524 0.524 ...
$rm : num 6.58 6.42 7.18 7 7.15 ...$ age    : num  65.2 78.9 61.1 45.8 54.2 58.7 66.6 96.1 100 85.9 ...
$dis : num 4.09 4.97 4.97 6.06 6.06 ...$ rad    : int  1 2 2 3 3 3 5 5 5 5 ...
$tax : num 296 242 242 222 222 222 311 311 311 311 ...$ ptratio: num  15.3 17.8 17.8 18.7 18.7 18.7 15.2 15.2 15.2 15.2 ...
$lstat : num 4.98 9.14 4.03 2.94 5.33 ...$ medv   : num  24 21.6 34.7 33.4 36.2 28.7 22.9 27.1 16.5 18.9 ...

Creating the training set for Boston which is half the size of the original

Code
set.seed(1)
train.boston <- sample(1:nrow(Boston), nrow(Boston)/2)

Building the tree

Code
tree.boston <- tree(medv ~ ., data = Boston, subset = train.boston)
summary(tree.boston)

Regression tree:
tree(formula = medv ~ ., data = Boston, subset = train.boston)
Variables actually used in tree construction:
[1] "rm"    "lstat" "crim"  "age"
Number of terminal nodes:  7
Residual mean deviance:  10.38 = 2555 / 246
Distribution of residuals:
Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
-10.1800  -1.7770  -0.1775   0.0000   1.9230  16.5800

only 4 predictors rm, lstat, crim, age were used. (wonder why?) Plotting the decision tree

Code
plot(tree.boston)
text(tree.boston, pretty = 0)

## Making the predictions

Code
yhat <- predict(tree.boston, newdata = Boston[-train.boston,])
test.boston <- Boston[-train.boston,"medv"]

plot(yhat, test.boston)
abline(0,1, col = "red")

Mean Square Error is defined as $MSE = \frac{1}{n} \sum_{i=1}^{n}(y_i - \hat{y_i})^2$

Code
mean((yhat - test.boston)^2)
[1] 35.28688

RMSE which uses the same units as the output variable is:

Code
(mean((yhat - test.boston)^2))^0.5
[1] 5.940276

As the SD is the same units as the outcome variable, we can say that this model leads to predictions which on an average are within Â±$5940 of the true median home value. Can we do better? Letâ€™s keep digging # Regression using Bagging & Random Forests Note: Bagging is a special case of Random Forest where $$m = p$$. The randomForest() function can be used for evaluating predictions from both bagging & RF. So first up is the Bagging process $$m$$ = sample number of predictors $$p$$ = total number of available predictors ## Bagging importance parameter here will compute and return the importance measures of each predictor variable. Importance measures provide a way to assess the relative importance of each predictor variable in the random forest model, based on the decrease in accuracy that occurs when that variable is excluded from the model. This increases the runtime significantly on large datasets Code library(randomForest) set.seed(1) bag.boston <- randomForest(medv ~ . , data = Boston, subset = train.boston, mtry = 12, # m = p importance = T) bag.boston  Call: randomForest(formula = medv ~ ., data = Boston, mtry = 12, importance = T, subset = train.boston) Type of random forest: regression Number of trees: 500 No. of variables tried at each split: 12 Mean of squared residuals: 11.40162 % Var explained: 85.17 Code yhat.bag <- predict(bag.boston, newdata = Boston[-train.boston, ]) plot(yhat.bag, test.boston) abline(0,1,col = "red") Whatâ€™s the accuracy here? Checking the MSE Code mean((yhat.bag - test.boston)^2) [1] 23.41916 And square root of MSE or RMSE is: Code (mean((yhat.bag - test.boston)^2))^0.5 [1] 4.839335 Thatâ€™s$4839 which is better than $5940 derived from the 7-node decision tree discussed in Key Takeaways. Moving to Random Forest now. ## Random Forest Its the same code, but we alter the number of predicted variables to $$m= 6$$ which is the mtry parameter Default settings for randomForest() for regression analysis, $$m = p/3$$ for classification analysis, $$m = \sqrt p$$ Code set.seed(1) rf.boston <- randomForest(medv ~ . , data = Boston, subset = train.boston, mtry = 6, # m = p/2 importance = T) rf.boston  Call: randomForest(formula = medv ~ ., data = Boston, mtry = 6, importance = T, subset = train.boston) Type of random forest: regression Number of trees: 500 No. of variables tried at each split: 6 Mean of squared residuals: 10.09466 % Var explained: 86.87 Code yhat.rf <- predict(rf.boston, newdata = Boston[-train.boston, ]) plot(yhat.rf, test.boston) abline(0,1,col = "red") Whatâ€™s the MSE here? Code mean((yhat.rf - test.boston)^2) [1] 20.06644 .. and therefore RMSE is: Code mean((yhat.rf - test.boston)^2)^0.5 [1] 4.479558 Thatâ€™s Â±$4480 from the mean predicted values - which is better than $4839 by using the Bagging method. Before moving ahead, we can also check the importance() function to determine key predictors Code importance(rf.boston)  %IncMSE IncNodePurity crim 19.435587 1070.42307 zn 3.091630 82.19257 indus 6.140529 590.09536 chas 1.370310 36.70356 nox 13.263466 859.97091 rm 35.094741 8270.33906 age 15.144821 634.31220 dis 9.163776 684.87953 rad 4.793720 83.18719 tax 4.410714 292.20949 ptratio 8.612780 902.20190 lstat 28.725343 5813.04833 What are these columns? • %IncMSE: Avg decrease in accuracy of predictions on out-of-bag samples when given variable is calculated • IncNodePurity:Total decrease in node purity that results from split on that variable averaged over all trees. • in regression trees, the node impurity measured by the training Residual Sum of Squares(RSS) • in classification trees, it is the deviance Code varImpPlot(rf.boston) This shows that the two most important variables are rm (average number of rooms per dwelling) and lstat (lower status of the population in %) # Boosting Using the gbm package (Gradient Boosting Model) for boosted trees. Few notes: • distribution = "gaussian" is considered for regression trees. For classification, it should be distribution = "bernoulli" • n.trees = 5000 is the number of trees we want to iterate over • interaction.depth = 4 limits the depth of each tree Code library(gbm) #Gradient Boosting Models set.seed(1) boost.boston <- gbm(medv ~ ., data = Boston[train,], distribution = "gaussian", n.trees = 5000, interaction.depth = 4) summary(boost.boston)  var rel.inf lstat lstat 37.7145639 rm rm 32.0396810 dis dis 6.2532723 crim crim 5.9078403 age age 4.8163355 indus indus 3.7365846 tax tax 2.5457121 nox nox 2.5286998 ptratio ptratio 2.5091014 rad rad 1.5427771 chas chas 0.2451445 zn zn 0.1602876 As seen earlier, lm and rstat show up as the most important variables. ## partial dependence plots By plotting the partial dependence of rm and lstat on outcome variable, we see that • rm has a direct relation viz. more the number of rooms, higher the price increases • lstat has an inverse relation viz. higher the lower stata in the neighbourhood, lower the price Code par(mfrow = c(1,2)) plot(boost.boston, i = "rm") Code plot(boost.boston, i = "lstat") ## Predictions Code yhat.boost <- predict(boost.boston, newdata = Boston[-train.boston,], n.trees = 5000) #| fig-cap: "Predicted v/s Actuals for Boston test data using Boosted RF" #| fig-cap-location: top plot(yhat.boost, test.boston) abline(0,1,col = "red") Figure looks so much better. testing the accuracy now. starting with the MSE Code mean((yhat.boost - test.boston)^2) [1] 12.98195 Wow.. thatâ€™s significantly lower. How about the RMSE? Code mean((yhat.boost - test.boston)^2)^0.5 [1] 3.603047 Amazing. This means our predicted value on an average is Â±$3603 from the actual which is a signifcant improvement from the RMSE calculated by Random Forest Â±$4480 ## Adding regularisation parameter đť›Ś Also referred as the shrinkage parameter, the default value is 0.001 but we will change this to 0.01 Code set.seed(1) boost.boston2 <- gbm(medv ~ ., data = Boston[train,], distribution = "gaussian", n.trees = 5000, interaction.depth = 4, shrinkage = 0.01) yhat.boost2 <- predict(boost.boston2, newdata = Boston[-train.boston,], n.trees = 5000) The resulting MSE therefore is calculated as: Code mean((yhat.boost2 - test.boston)^2)^0.5 [1] 3.593472 Now weâ€™ve got it even lower at Â±$3593

The function gbart() is used for regression analysis. This syntax slightly reminds me of the python syntax as weâ€™re back to creating matrices for each test, train, x & y.

Code
library(BART)
x_BART <- Boston[,1:12]
y_BART <- Boston[,"medv"]

xtrain_BART <- x_BART[train.boston, ]
ytrain_BART <- y_BART[train.boston]

xtest_BART <-  x_BART[-train.boston, ]
ytest_BART <- y_BART[-train.boston]

Creating the model now:

Code
set.seed(1)
bart_model <- gbart(xtrain_BART, ytrain_BART, x.test = xtest_BART)
*****Calling gbart: type=1
*****Data:
data:n,p,np: 253, 12, 253
y1,yn: 0.213439, -5.486561
x1,x[n*p]: 0.109590, 20.080000
xp1,xp[np*p]: 0.027310, 7.880000
*****Number of Trees: 200
*****Number of Cut Points: 100 ... 100
*****burn,nd,thin: 100,1000,1
*****Prior:beta,alpha,tau,nu,lambda,offset: 2,0.95,0.795495,3,3.71636,21.7866
*****sigma: 4.367914
*****w (weights): 1.000000 ... 1.000000
*****Dirichlet:sparse,theta,omega,a,b,rho,augment: 0,0,1,0.5,1,12,0
*****printevery: 100

MCMC
done 0 (out of 1100)
done 100 (out of 1100)
done 200 (out of 1100)
done 300 (out of 1100)
done 400 (out of 1100)
done 500 (out of 1100)
done 600 (out of 1100)
done 700 (out of 1100)
done 800 (out of 1100)
done 900 (out of 1100)
done 1000 (out of 1100)
time: 9s
trcnt,tecnt: 1000,1000

Computing the test error MSE

Code
yhat_bart <- bart_model$yhat.test.mean mean((yhat_bart - test.boston)^2) [1] 15.94718 uhoh.. it was 12.9 for the Boosted RF trees. So the RMSE can be calculated as: Code mean((yhat_bart - test.boston)^2)^0.5 [1] 3.993392 Thatâ€™s Â±$3993 which is not as good as \$3593 RMSE that the Boosted Tree with shrinkage gave us.

# Summary

The calculations show that as per the RMSE, the accuracy of models can be ordered as:

Bagging < Random Forest < BART < Boosting < Boosting w/ Regularization
